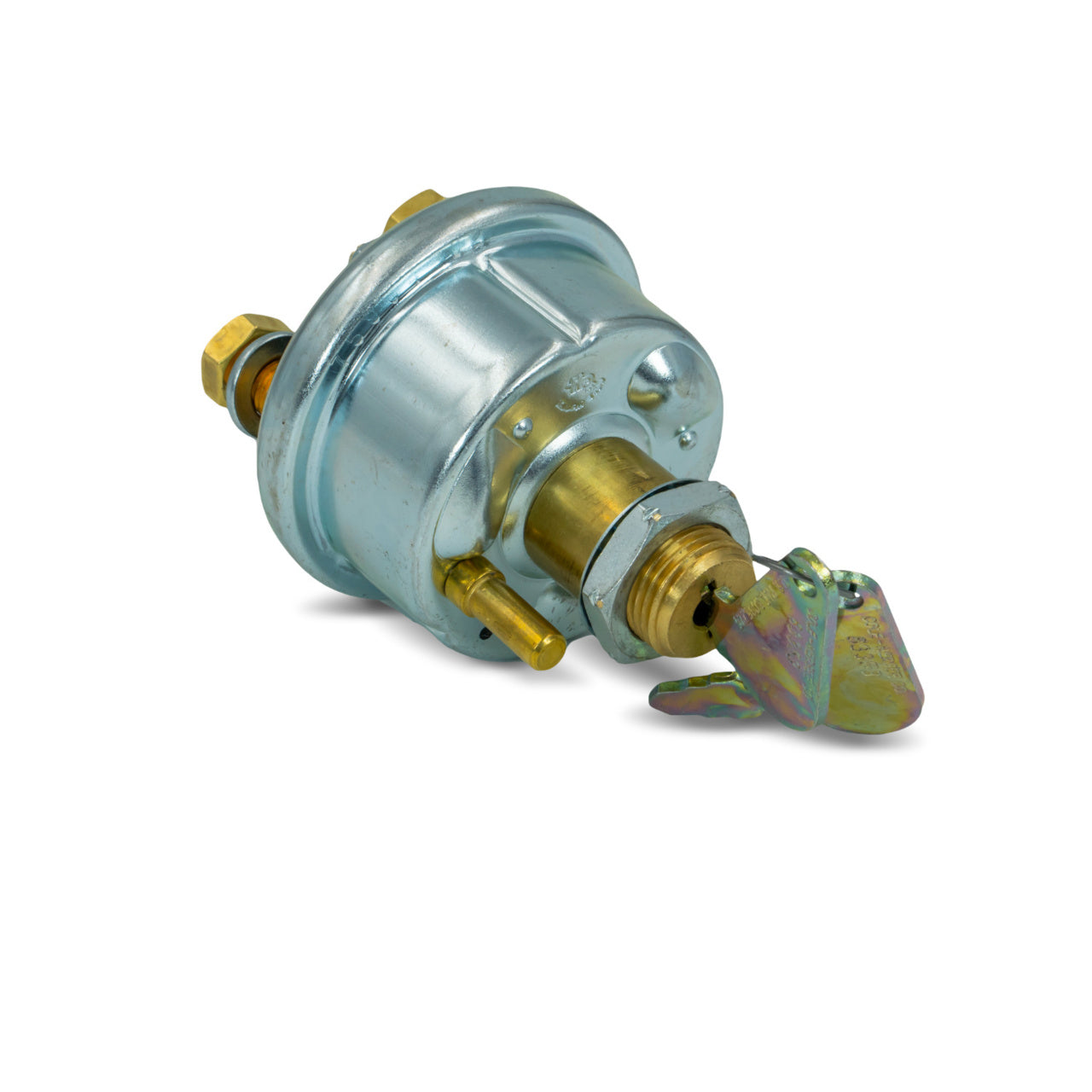

Cole Hersee DPST M75904-02 Marine Switch

The 75900 Double Pole Series 36 V High-Amp DPST Master Battery Disconnect Switch is designed to handle two loads. This allows you to control two systems, such as the battery and the alternator or generator field circuit

175 amp continuous, 1,000 amp inrush, 36 volt.

Hencol Lock

Plated Steel Housing

175 A continuous current rating on large 3/8"-24 studs and 20 A rating on small #10-32 studs

Large studs are rated for an intermittent current of 1000 A at 15 seconds ON, 5 minutes OFF

Silver contacts

Ringed key actuator

Indexing and alignment pin

Brass 3/4 - 16 thread 17/32 long fits panel through 1/4 thick Mounting Stems
