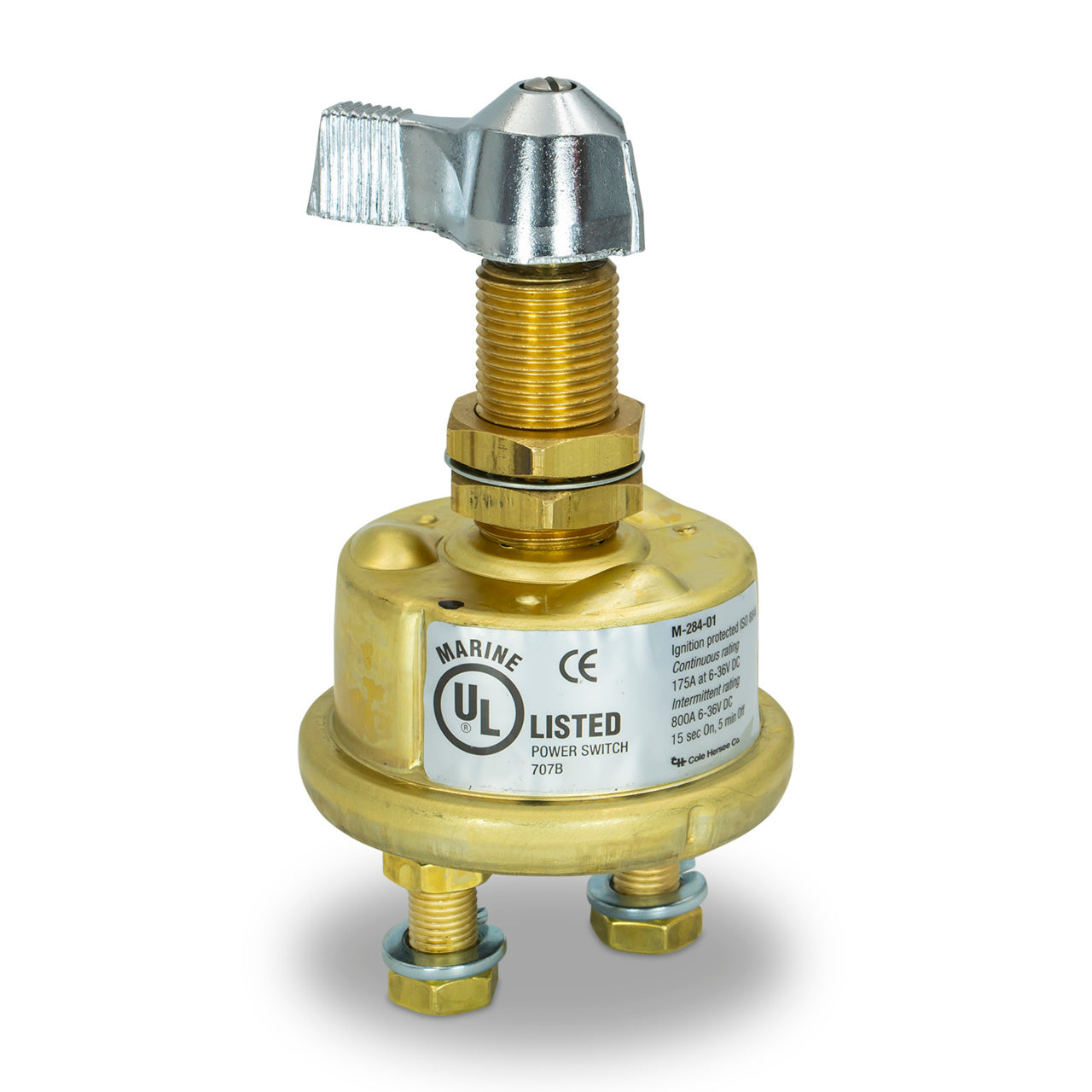

Cole Hersee SPST M-284-01 Marine Switch

SW ROT MAST_DISC 2POS LEVER UL

The M-284 Series 36 V 175 A Marine Battery Disconnect Switch is a marine-grade, brass-body master battery disconnect switch for boat and commercial vehicle applications that features single-pole, single-throw (SPST) circuitry

This Cole Hersee brand disconnect switch (M-284-01) is rated for 800 A intermittent at 15 seconds on, 5 minutes off and features silver-plated brass studs. This model is UL Listed

175 Amps continuous current, 36 V.

Chrome lever actuator

Silver Contacts

Brass Housing

Brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick Mounting Stem

Ignition protected

UL Listed
